High-tech pen detects Parkinson’s disease with 96% accuracy

Researchers have developed a smart pen designed not only for writing, but as a potential tool to make early detection of Parkinson’s disease more affordable, accessible, and life-changing. Parkinson’s, a progressive and incurable condition that affects the nervous system, is difficult to detect in its earliest stages.

Its more obvious signs—like tremors or stiffness—don’t usually appear until serious damage to the brain has already happened. But a team of scientists may have created a simple device that could quietly signal the disease before those symptoms emerge.

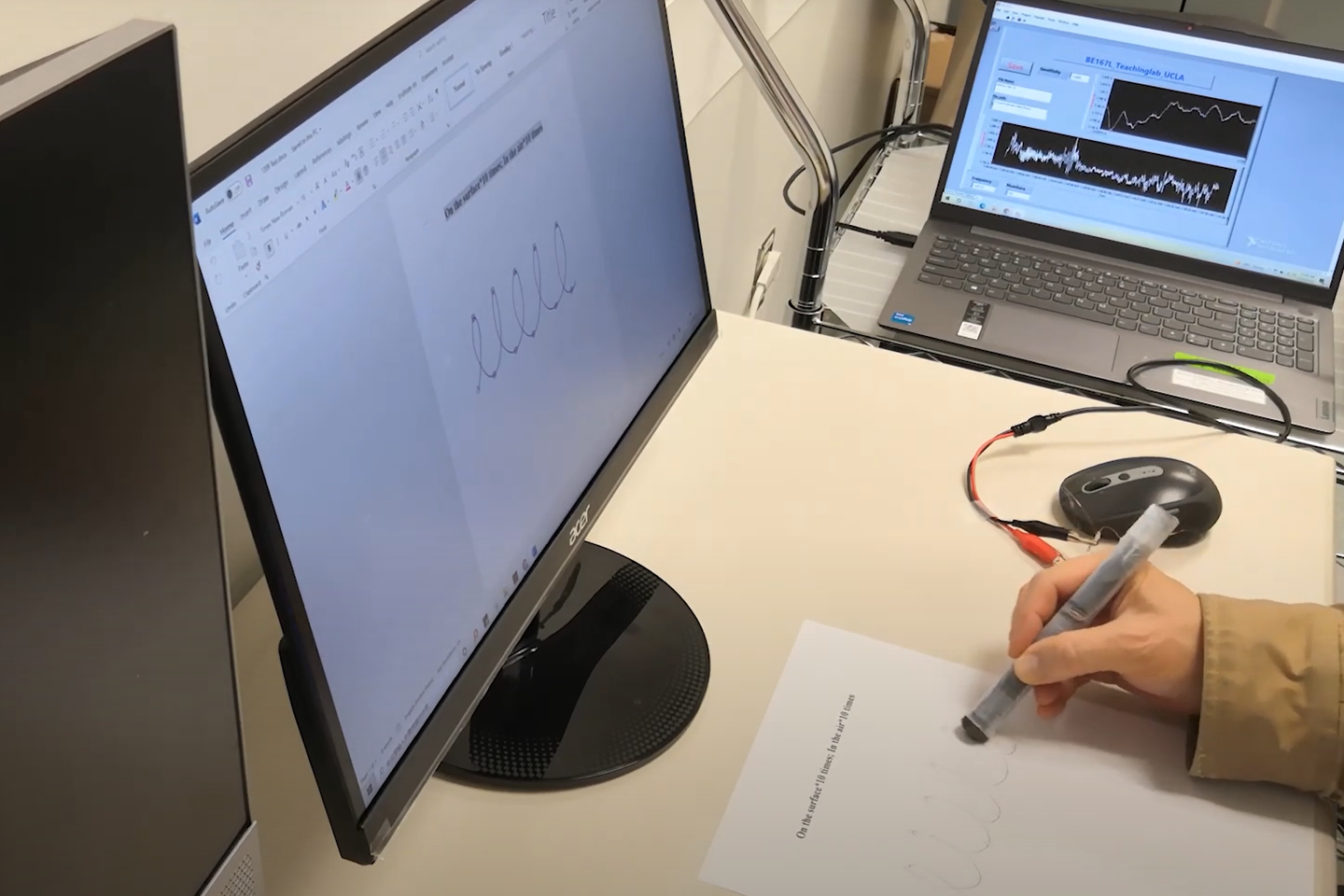

The research was led by Jun Chen, associate professor of bioengineering at UCLA’s Samueli School of Engineering. His team developed a high-tech diagnostic pen with a magnetoelastic tip and ferrofluid ink. At first glance, it looks like any other pen. But what sets it apart is how it senses motion and converts that movement into data. It doesn’t just record handwriting on paper. It also tracks how your hand moves through the air.

This pen isn’t designed for writing stories or notes. Instead, it records every detail of how your hand and fingers move. When used, it transforms the motions into signals using its soft tip and the fluid ink inside. These signals are then analyzed to find patterns linked with Parkinson’s. The signals don’t just show how someone writes but how their muscles and nerves behave—offering clues long before more obvious symptoms appear.

At the core of the pen is a soft, silicone-based magnetoelastic tip. This means it changes its magnetic properties slightly when it is moved or bent. The pen’s special ink—known as ferrofluid—contains magnetic nanoparticles that respond to movement, even in the air. A coil of conductive yarn around the pen picks up these changes and turns them into signals.

Unlike other devices that require batteries or cables, this pen powers itself through the act of writing. As the ink and tip move, magnetic changes create small amounts of energy. That energy, in turn, gets captured as data. These data points are sensitive enough to capture motion that the eye can’t see.

Even tiny tremors or micro-delays in movement become visible in the signals collected. That’s important because many early motor symptoms of Parkinson’s are too small to notice without special tools.

To test their new tool, the UCLA team launched a pilot study with 16 volunteers. Three of them had already been diagnosed with Parkinson’s. The rest were healthy individuals without any known motor issues. Each participant was asked to use the pen to perform writing tasks.

As they wrote, the pen recorded their hand motions in fine detail. But it wasn’t the human eye doing the judging. Instead, researchers trained a one-dimensional convolutional neural network—a type of machine learning model—to interpret the handwriting signals. This kind of neural network is good at picking up subtle patterns in time-series data, like how a hand trembles or slows down over a few seconds.

The results were striking. The system was able to identify Parkinson’s patients with an average accuracy of 96.22%. That level of precision, especially in such a small study, shows the pen’s potential. The scientists believe that with larger studies and more data, the model could become even better.

“Detection of subtle motor symptoms unnoticeable to the naked eye is critical for early intervention in Parkinson’s disease,” said Chen. “Our diagnostic pen presents an affordable, reliable and accessible tool that is sensitive enough to pick up subtle movements and can be used across large populations and in resource-limited areas.”

Parkinson’s affects how the brain controls movement, mostly due to the loss of dopamine-producing neurons. These neurons send signals that help muscles work smoothly. When too many of these cells die, movements become shaky, stiff, or slow. But the damage often starts long before patients feel or notice these issues. By the time tremors or balance problems appear, more than half of those neurons may already be gone. That’s why catching signs early is so important.

Current methods of diagnosis rely heavily on symptoms and clinical exams. Some advanced tools, like brain scans or blood tests for biomarkers, can offer more information. But they often require expensive equipment and trained experts, usually only found in major hospitals or research centers. For people living in rural or low-income areas, those resources might not be available. Even when they are, it can take months to get tested. During that time, the disease may worsen.

A low-cost, portable, and self-powered device like this pen could be used in small clinics, primary care offices, or even at home. Doctors could include a quick handwriting test as part of a yearly check-up. If the pen detects movement patterns that resemble early Parkinson’s, it could trigger earlier referrals and testing.

The diagnostic pen reflects a shift in medical research: using simple, everyday actions to uncover hidden problems. Writing involves many muscles, nerves, and brain pathways. Changes in style, speed, or pressure can reveal what’s happening beneath the surface.

This pen is more than a Parkinson’s tool—it could help detect other movement or nerve-related diseases. Conditions like essential tremor, multiple sclerosis, or even early dementia might also be caught through similar tools. Because the pen needs no batteries or outside power, it's easy to use in areas with limited electricity. Its low-cost design still provides high-quality data—both advanced and accessible.

For patients, it offers more control over their health. A simple test could lead to earlier care or treatments that slow the disease. For doctors, it’s a powerful new way to screen more accurately and often.

Chen’s team plans to refine the technology with larger clinical trials. They aim to collect more writing samples, train the model further, and expand its use to detect other neurological disorders.

As technology merges with health care, tools like this pen show innovation doesn’t always come in complex packages. Sometimes, the future of medicine starts with putting pen to paper.
