Researchers discover a new type of earthquake and it's man made
[Dec 6, 2021: Ruhr-University Bochum]
The events are a new type of induced earthquake that have been triggered by hydraulic fracturing. (CREDIT: Getty Images)
A Canadian-German research team have documented a new type of earthquake in an injection environment in British Columbia, Canada. Unlike conventional earthquakes of the same magnitude, they are slower and last longer. The events are a new type of induced earthquake that have been triggered by hydraulic fracturing, a method used in western Canada for oil and gas extraction. With a network of eight seismic stations surrounding an injection well at distances of a few kilometres, researchers from the Geological Survey of Canada, Ruhr-Universität Bochum, and McGill University recorded seismic data of approximately 350 earthquakes. Around ten percent of the located earthquakes turned out to exhibit unique features suggesting that they rupture more slowly, similar to what has previously been observed mainly in volcanic areas.
The group headed by Hongyu Yu – first at RUB, later at the Canadian Geological Survey of Canada – and RUB Professor Rebecca Harrington describes the results in the journal Nature Communications, published online on 25 November 2021.
Several theories on the origins of earthquakes
To date, researchers have explained the occurrence of earthquakes in the hydraulic-fracturing process with two processes. The first says that the fluid pumped into the rock generates a pressure increase substantial enough to generate a new network of fractures in the subsurface rocks near the well. As a result, the pressure increase can be large enough to unclamp existing faults and trigger an earthquake. According to the second process, the fluid pressure increase from injection in the subsurface also exerts elastic stress changes on the surrounding rocks that can be transmitted over longer distances. If the stress changes occur in rocks where faults exist, it can also lead to changes that cause the fault to slip and cause an earthquake.
Recently, numerical models and lab analyses have predicted a process on faults near injection wells that has been observed elsewhere on tectonic faults. The process, termed aseismic slip, starts out as slow slip that does not release any seismic energy. The slow slip can also cause a stress change on nearby faults that causes them slip rapidly and lead to an earthquake. The lack of seismic energy from aseismic slip and the size of the faults involved make it difficult to observe in nature. Researchers have therefore not yet been able to document aseismic slip broadly with any association to induced earthquakes. The work of the current study, provides indirect evidence of aseismic loading, and a transition from aseismic to seismic slip.
Modifying the hydraulic fracturing process
The German-Canadian research team interpret the recently discovered slow earthquakes as an intermediate form of conventional earthquake and aseismic slip – and thus as indirect evidence that aseismic slip can also occur in the vicinity of wells. The researchers therefore dubbed the events hybrid-frequency waveform earthquakes (EHW).
“If we understand at which point the subsurface reacts to the hydraulic-fracturing process with movements that don’t result in an earthquake and, consequently, cause no damage to the surface, ideally we could use that information to adjust the injection procedure accordingly,” as Rebecca Harrington, Head of the Hydrogeomechanics Group at RUB, describes one implication of the study.

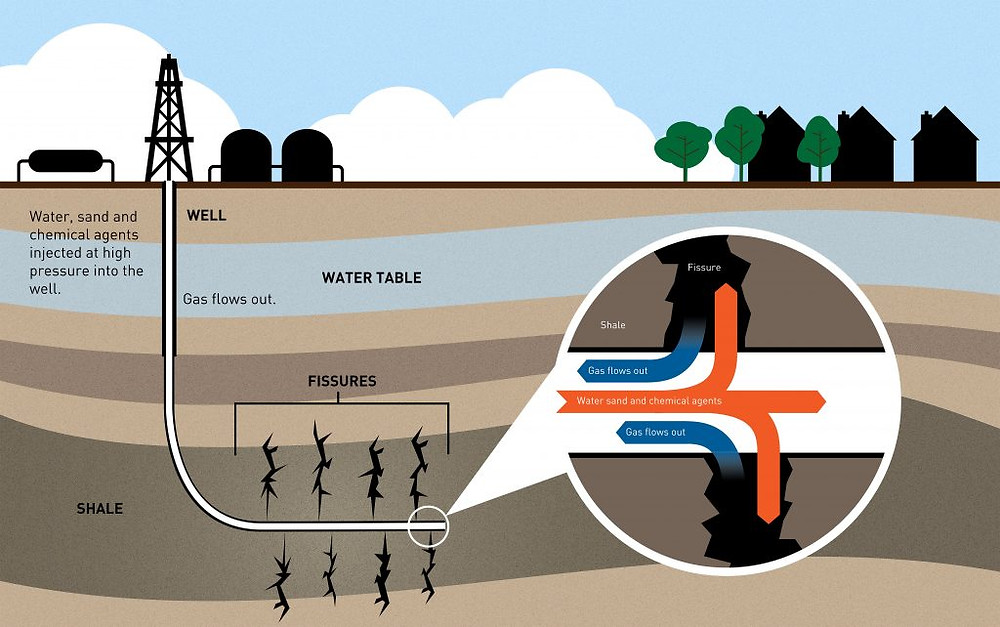

Fracking for gas diagram. (CREDIT: jaddingt/via Adobe)
Not all quakes spread at the same rate
“We’d assumed that induced earthquakes behave like most other earthquakes and have roughly the same rupture speed of two to three kilometres per second,” explains Rebecca Harrington. But that doesn’t always seem to be the case. While the shaking from a conventional earthquake of magnitude 1.5 in the researchers’ data set had died down after about seven seconds, an EHW earthquake of the same magnitude continued to shake for more than ten seconds.
